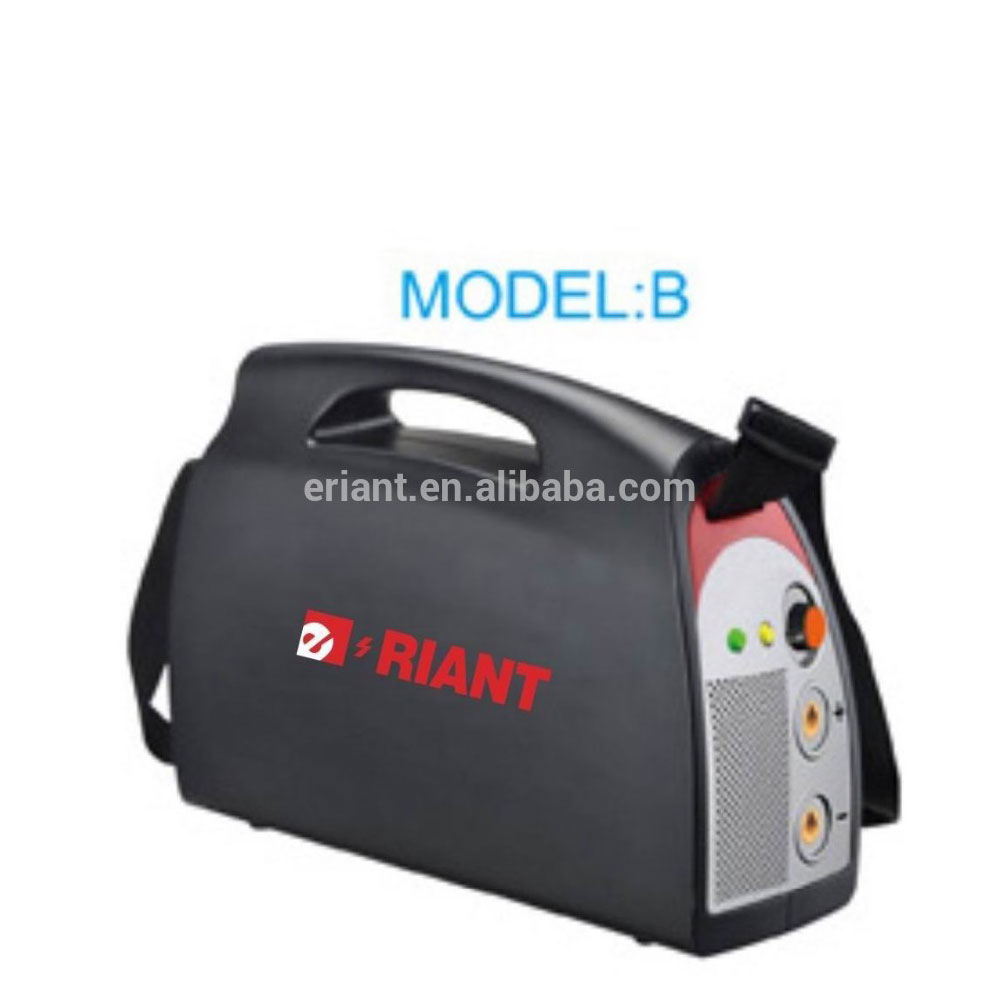

2014 new protable electric IGBT inverter welding machine
ET160SI
| Rated Input Voltage (V) | 220±15% |
| Frequency (HZ) | 50/60 |
| Rated Input Capacity (KVA) | 7.2 |
| Rated Input Current (A) | 32.8 |
| No-load Voltage (V) | 60 |
| Range of Output Current (A) | 20-160 |
| Range of Output Voltage (V) | 20.8-26.4 |
| Rated Duty Cycle (%) | 60 |
| Efficiency(%) | 80 |
| Power factor | 0.73 |
| Protection Class | IP21 |
| Insulation Class | F |
| Dimension (mm) | 300*125*220 |
| Weight (kgs) | 6.1 |
| Welding electrode diameter | 1.6-3.2 |
